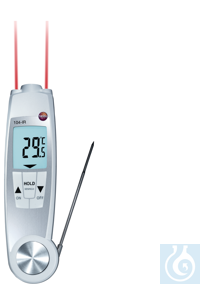

0560 1040 Testo testo 104-IR - Infrared/Penetration Food Thermometer (waterproof) 0560 1040

For carrying out surface and core temperature measurements
Durable and practical: rugged folding joint, waterproof housing (IP65), fits snugly in any pocket
With integrated probe and infrared laser
HACCP / EN 13485 compliant

Overview

The testo 104-IR food safety thermometer is ideal for carrying out temperature and food safety checks. And because it fits snugly in any pocket, it is always there when you need it to carry out checks on incoming goods, spot checks during transport or food inspections in the retail industry.

Probe thermometer and infrared thermometer rolled into one

The testo 104-IR is equipped with a high-precision 2-point laser and 10:1 optics which show the exact measurement range and allow you to carry out quick and accurate non-contact surface temperature measurements. The 2-in-1 thermometer is especially useful for checking incoming goods and for scanning the surface temperature of individual food products as well as whole pallets.

The folding probe thermometer is used to measure the core temperature of food products like meat and sausage meat for example. It generally comes into play when the infrared surface measurements are not within the prescribed thresholds. The probe can be folded away when not in use to protect against breakage.

Quick and easy to use. Tried and tested in the field

The thermometer is immediately activated when the probe sensor is folded down. Simply press a key to start the infrared measurement. The results are presented on a large, easy-to-read display. Because the keys themselves are easy to understand, there is no need to instruct individuals on how to use the thermometer. Last but by no means least, the food safety infrared thermometer is waterproof and IP65 rated.

Areas of Application

It doesn`t matter whether the food in question is being delivered, is in transit or in storage - in all three cases it is imperative that the cold chain is maintained at all times. The testo 104-IR food safety thermometer is ideal for ensuring that the prescribed temperature is maintained at each point in the cold chain. And like all the testo temperature meters for the food industry the testo 104-IR is EN 13485 certified and HACCP compliant.

General technical data
Housing	ABS / TPE / PC, diecast zinc, stainless steel
Protection class	IP65
Laser spot	on / off
Measurement value	Temperature °C / °F / °R
Measurement mode	Hold or auto hold (immersion probe)
Dimensions (probe folded out)	281 x 48 x 21 mm
Dimensions (probe not folded out)	178 x 48 x 21 mm
Standards	EN 13485
Warranty	2 years
Battery type	2 AAA micro batteries
Battery life	10 h
Display type	LCD
Display size	one-line
Display ligthing	illuminated
Storage temperature	-30 to +50 °C
Weight	197 g (incl. batteries)
Operating temperature	-20 to +50 °C

Temperature - NTC
Measuring range	-50 to +250 °C
Accuracy	±1 °C (-50.0 to -30.1 °C) ±0.5 °C (-30.0 to +99.9 °C) ±1 % of mv (Remaining Range)
Resolution	0.1 °C

Temperature - Infrared
Measuring range	-30 to +250 °C
Accuracy	±2.5 °C (-30 to -20.1 °C) ±2.0 °C (-20 to -0.1 °C) ±1.5 °C or ±1.5 % of mv (Remaining Range)
Resolution	0.1 °C
Measuring rate	0.5 s

testo 104-IR waterproof infrared food safety thermometer, fold-away probe, batteries, calibration protocol.

Technical data:
Product type description:	104-IR
Low limit of temperature range:	-50 °C
Upper limit of temperature range:	+250 °C
Measurable parameters:	Temperature
Protection type IP:	IP65
Вес нетто:	197 g
Width:	178 mm
Depth:	21 mm
Height:	48 mm
EAN Code:	4029547011870
