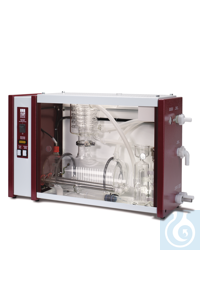

2204 GFL Glass Water Still, without storage tank, capacity 4 l/h

GFL Glass Water Still 2204
Fully automatic glass water still for single distillation, suitable for both bench and wall mounting.
High-quality distillate is used in research and development e. g. for preparing bacteriological and medical samples, for cell and tissue cultures, for the production of reagents and unguents, for cleaning and sterilisation processes, for buffered solutions as well as microbiological and analytical applications.
Capacity: 4 litres per hour
Distillate quality: Conductivity approx. 2.2 µ-Siemens/cm at 25°C **. Corresponds to international pharmacopoeia requirements, pyrogen and germ-free, low gas.
Cooling water required: approx. 96 l / h. Economical energy consumption by distillation of the heated cooling water. Water saving through automatic water cut-off. Unnecessary water consumption will be avoided.
Control: Fully automatic. The sterilisation of the condensers by steam can be activated manually. Distillate withdrawal through hose connection at the right side of the unit. Main switch and pilot lamps to monitor the distillation stage at the front of the unit.
Safety: electronic level control during the whole distilling process. Level control with automatic power cut-off in case of water shortage. An electronic impurity detector induces an automatic water change to rinse and clean the evaporator.CO2 degassing through outlet in the condenser.
Material: evaporator, condenser and overflow made of borosilicate glass. Condenser with dribble guard. Quartz sheathed heating elements.
Housing: Visible distillation process due to the easily removable, unbreakable front screen which does not steam up. Outer housing made of electrolytically galvanised sheet steel, electrostatically powder-coated with epoxy resin.
Water connection: Cooling water inlet through built-in solenoid valve and hose connection for pressure hose 1/2" (inner ? approx. 12.7 mm). Cooling water outlet with hose connection 1/2" (inner ? approx. 12.7 mm). Hoses for water in- and outlet are available as accessory.
Mains connection: cable with shock-proof plug
Required cooling water pressure: > 3 to max. 7 bar

The Water Still is maintenance-free and has the CE and EAC mark.
* Other voltages and frequencies available on request

** Value averaged by Institut Fresenius for operation with tap water. The distillate quality depends on the quality of raw water.

Technical data:
Product water conductivity:	2,2 µS/cm
Output:	4 l/h
Power input:	3 kW
Rated frequency:	50 Hz
Material:	Borosilicate Glass 3.3
Voltage supply:	230 V AC
Вес нетто:	17 kg
Width:	650 mm
Depth:	200 mm
Height:	390 mm
User Interface:	Mechanical switch
