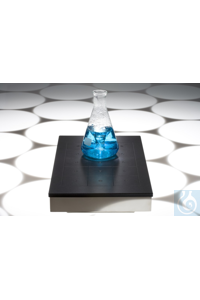

2mag 2mag - STIRRING HOTPLATE 15 Multiple stirring hotplate for 15x250 mL Erlenmeyers 66315

Stirring-heating plate with 15 stirring positions, universally applicable for miscellaneous vessel sizes and shapes, stirring point distance 65 mm, suitable for 15 x 250 ml glass beakers (tall form) incl. control unit heatMIXcontrol.

For mass screenings, incubating or concentrating of probes, evaporating of solvents, simple and easy system integration

Stirring
Powerful 15 stirring points, maintenance-free and wear-free by inductive 2mag-Magnetic-Drive concept, extremely wide speed range of 100 to 2,000 rpm, 100% synchronized speed, jerk-free stirring even at low speeds, 10-step power settings of the stirrer, high power setting for viscous liquids and reduced power setting for long-term operation without any heating effects caused by the stirrer, clear digital display for settings of stirrer speed, stirrer power and temperature of the integrated heater, SoftStart procedure for reliable catching/centering and safe acceleration of the stirring bar, QuickSet for quick setting of start- and maximum speed.

Heating
Heating plate made of resistant aluminium alloy, PTFE-coated for increased chemical resistance and easier cleaning, fast heating-up by powerful integrated electrical heater, homogenous temperature distribution, maximum heating temperature +200 °C, PowerDetect for automatic compensation of physically determined loss in stirring power which can come up to 40% at high temperatures, independent over-temperature protection inside the plate.

Separate control unit heatMIXcontrol for operation of magnetic stirrer and integrated heater, for long-term protection of the electronics against aggressive liquids and gases as well as thermal influences, independent and adjustable over-temperature limiter, stainless steel housing, compact and space-saving, connection for external P100 sensor, RS232 interface.

Stirring points: 15
Stirring point distance: 65 mm
Stirring volume/point: 1 – 1,000 ml
Speed range: 100 – 2,000 rpm
Stirring power (max.): 40 W
Power setting: 10-step (10 – 100 %)
Temperature range: +40°C up to +200 °C
Material plate: aluminum (PTFE-coated)
Material housing: Stainless steel
Material sealing: Silicone
Permitted operation conditions: -10 up to +40 °C (at 80% humidity)
Permitted storage conditions.: -40 °C up to +70 °C, 10 – 95 %, 500 - 1060 hPa
Operating voltage: 230 V
Heating power (max.) at 230 V: 1,200 W
Protection category: IP20
Measurements (WxDxH): 250 x 430 x 75 mm
Weight (gross): approx. 13 kg

Technical data:
Product type description:	STIRRING HOTPLATE 15
Drive type:	Magnetic field
Maximum operating temperature:	200 °C
Minimum rotation speed:	100 upm
Maximum rotation speed:	2000 upm
Heating capacity:	1,2 kW
Maximum stirred volume recommended:	1 l
Protection type IP:	IP20
Voltage supply:	230 V AC
Вес нетто:	11,2 kg
Width:	250 mm
Depth:	430 mm
Height:	75 mm
Number of stirrers:	15
