Thermo Scientific Orion Star T940 All-in-One Titrator and Kits Orion Star T940 all-in-one... START9401

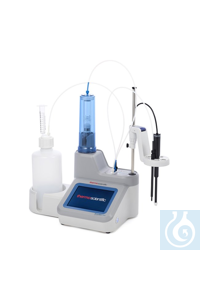

Orion Star T940 All-in-One Titrator and Kits
Use the Orion Star T940 all-in-one titrator for flexible pH, redox and ion concentration titrations including equivalence point titrations, preset pH or mV endpoint titrations plus multiple known addition (MKA) mode for automated known addition of various ions. Pair the titrator option with any of our premium ROSS pH electrodes or Orion redox and ion selective electrodes or select one of our preconfigured titrator and electrode kits for a bundled discount.

•Accurate, reproducible results: Automating the titration workflow enables analysis to be run using the same setup parameters and calculations every time
•Faster setup time: Setup and save electrode, titrant and titration parameters once using methods
•Improved lab throughput: Start the titration and let the instrument run unattended
•Reduced cost and downtime: Easily replace titrator parts to minimize maintenance downtime while long lasting electrodes reduce the cost of ownership
•Securely document test results: View results live, in the summary table and within the 100 point data log
•Applications database: Tested and validated preprogrammed methods can be loaded onto your titrator
•Standard ROSS kit with 8102BNUWP ROSS Ultra pH electrode and 927007MD stainless steel ATC temperature probe is ideal for most standard pH titrations and especially preset endpoint titrations that include temperature
•ROSS Sure-Flow kit with 8172BNWP ROSS Sure-Flow pH electrode is designed for challenging samples that can clog standard pH electrodes or that require a fast-flowing sleeve-type junction

• Model: Orion Star T940
• Type: Acid/base, redox and ion titrator
• Description: Orion Star T940 all-in-one titrator standard ROSS kit
• Includes: 8102BNUWP ROSS Ultra pH electrode, 927007MD ATC probe, 20 mL burette, stirrer probe, dispenser probe, standard tubing kit, 1 L plastic bottle, GL38 bottle cap with two ports, desiccant tube, computer cable, literature on USB drive, 110-240 V power supplies
• Applications: Acid-base titrations, redox titrations, ion concentration titrations
• Functions Available: Sample titration, titrant standardization, calibration and direct measure
• Advanced ISE Functions: Multiple known addition (MKA); automated calibration and calculation of sample concentration by adding aliquots of standard to sample using the burette
• Titration Technique: Equivalence point or preset endpoint
• Equivalence Points: 1 to 2
• Preset Endpoints: 1 to 3
• Titration Types: Direct or back titration
• Blank Options: Fixed value or variable value using titration
• Cycles Per Titration Run: 1 to 5 cycles, option to exclude cycle results from average results and RSD calculations
• Titrant Determination: Standardization titration or manual concentration input
• Titration Process Control: Routine, quick, careful or user defined
• Precision: 0.5% RSD, dependent on environment and handling conditions
• Titration Setup Wizard: Yes, using Start a New Titration workflow
• Burette Sizes: 10 mL, 20 mL (included) or 50 mL
• Burette Functions: Automatic rinse cycles for flushing and discrete dispense volume with continuous option; Exceeds accuracy requirements of ISO8655-3
• Resolution: Burette drive offers advanced micro-step technology that provides 25,600 micro-steps per motor revolution for smooth and precise burette positioning (over 2 million micro-steps over the full burette stroke range)
• Stirrer Probe Speeds: 5 user selectable speeds (250 to 3700 RPM)
• Methods: Up to 10 methods with optional password protection; import/export methods via USB flash drive
• Data Points: 100 data sets each: sample titration, titrant standardization, calibration and direct measure
• Data Management Details: Data log export as CSV or PDF file, short or long format
• Sample ID: Auto-incremental, manual or off
• Time and Date: Yes, with nonvolatile battery backup
• Memory: Non-volatile memory preserves data logs and settings
• Updateable Firmware: Yes, using USB flash drive
• Alarm Output: Notifications for Titration Cycle Complete, Maximum Titrant Volume, Data Log Full, Calibration Due, Maintenance Reminder
• Range (pH): -2.000 to 20.000
• Resolution (pH): 0.001, 0.01, 0.1 (user selectable)
• Accuracy (pH): ±0.002pH
• Range (ISE): 0.0001 to 19990
• Resolution (ISE): 0.0001 minimum, 1 to 4 significant digits (user selectable)
• Accuracy (ISE): ±0.2 mV or ±0.05% of reading, whichever is greater
• mV Range: -2000.0 to +2000.0 mV
• Resolution (mV): 0.1 mV
• Accuracy (mV): ±0.2 mV
• Range (Temperature): -5.0 to 100.0 °C; 23.0 to 212 °F
• Resolution (Temperature): 0.1 °C
• Accuracy (Temperature): ±0.2 °C
• Calibration: pH, mV, ion concentration (ISE) and temperature
• Calibration Points (pH): 1 to 5 points
• Calibration Points (ISE): 1 to 5 points
• Calibration Points: 1 point relative mV (RmV) mode
• Temperature Probe Calibration: Optional 1 point offset calibration
• Temperature Selection: Manual or automatic
• Display Type: 5.7” color capacitive touchscreen, 640 x 480 resolution
• Backlight Option: Yes, adjustable
• Languages: Chinese, English, French, German, Italian, Japanese, Korean, Portuguese and Spanish
• Material: ABS plastic
• Channels: 1
• Probe Type: pH electrode, redox electrode or ion selective electrode (ISE); reference half-cell electrode; ATC temperature probe; stirrer probe
• Inputs: BNC (pH, redox or ion selective electrode), pin-tip (reference electrode), 8 pin MiniDIN (ATC temperature probe), stirrer input (stirrer probe)
• Outputs: 3 USB ports for printer, USB flash drive and computer software connections
• Certifications/Compliance: CE, TUV 3-in-1, FCC, EN/EIC61326-1, IEC 61010
• IP Rating: IP-51
• Electrical Requirements: 100-240V, 50/60 Hz
• Dimensions (L x W x H): 10” x 16” x 14”; 25.4 cm x 40.6 cm x 35.6 cm
• Temperature (English) Operating: 41 to 104 °F
• Temperature (Metric) Operating: 5 to 40 °C
• Relative Humidity Range: 5 to 85%, non-condensing
• Warranty: 1 year replacement warranty
