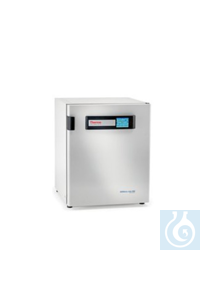

Thermo Scientific Heracell™ VIOS 250i CO2 Incubator with Copper Chamber Single 255L... 51030993

37 175,36 евро / 3 395 794 руб.

Получить предложение

Производитель может поднять цены — запросите коммерческое предложение сейчас, и мы зафиксируем за вами текущую цену.

Привезем под заказ
Срок поставки с завода 6-8 недель

Thermo Scientific Heracell™ VIOS 250i CO2 Incubator with Copper Chamber Single 255L... 51030993

Гарантия 1 год

Код:: 51030993

Производитель:: Thermo Scientific

Онлайн консультант Анна Головацкая Получить консультацию эксперта

Heracell™ VIOS 250i CO2 Incubator with Copper Chamber
Achieve your next breakthrough. The Thermo Scientific™ Heracell™ VIOS CO₂ incubator is specifically designed to deliver the performance reliability, ease of operation, and value required to support a range of culturing needs from basic research to the demanding, leading-edge applications, so you're ready for whatever comes next.
Better solutions for optimal cell growth. Our CO₂ incubators with 100% copper chambers provide the ideal in vitro environment. Large 255L capacity provides space for high throughput applications and accomdates spaces for culture devices for larger sample output. Direct heat chamber

255L (9.0 cu.ft.) 100% solid copper chamber with compact footprint, easily stackable
Standard left hand door swing, field reversible by qualified service support

THRIVE active airflow

In-chamber fan gently distributes clean, humidified air throughout the chamber ensuring homogeneous conditions
Fast recovery of all parameters in 10 minutes or less for stable culturing conditions
Auto-stop function disables fan operation during door openings to minimize air exchange

ISO Class 5 HEPA filtration

In-chamber HEPA continuously filters the entire chamber air volume every 60 seconds
ISO Class 5 clean room air quality is achieved in the culture chamber within 5 minutes
Continuous protection minimizes airborne contaminants settling on interior surfaces

Covered Integrated humidity reservoir

Directly heated water reservoir provides stable high relative humidity levels, preventing culture desiccation
Cover limits particles and spilled media from settling into the reservoir, keeping water clean
Separating water provides a condensation free incubation chamber, limiting areas for contaminants to breed
5X faster humidity recovery than traditional water pan designs
Easy water handling: humidity reservoir may be filled or drained without removing shelves or cultures
Water level sensor indicates when a refill is needed

Steri-Run on-demand high temperature sterilization cycle

Independently validated overnight cycle ensures complete elimination of all biological contaminants
180°C cycle designed for uniform 12-log sterilization on all chamber surfaces
Simplifies cleaning and eliminates the need for separate autoclaving and reassembly of components

Intuitive, interactive iCAN touchscreen control

Bright LED screen to monitor all incubator interactions
Provides visibility to changes in culture environment with performance trend graphing, error and usage logs
Convenient on-screen user prompts and reminders for easy navigation
Selectable languages simplify operation: English, Spanish, German, French, Italian, Japanese and Mandarin

Wireless Monitoring Solution
Thermo Scientific™ DeviceLink HUB™, our easy-to-install solution, works with the Thermo Fisher Cloud to monitor conditions inside your CO ₂ incubators.

DeviceLink HUB monitors chamber temperature, gas levels, alarms, and alerts from the incubator data output connection, RS-232 or USB
Alarms and notifications are also sent to the user by email and mobile push notification
DeviceLink HUB is an optional accessory for models with the iCAN touchscreen interface
DeviceLink HUB is available in the following regions
- United States and Canada
- 28 members of the European Union
- Iceland, Liechtenstein, Norway, and Switzerland

In situ sensors and probes designed for precise control

Dual temperature probes for over temperature protection with operational back up
Thermal conductivity (TC) CO₂ sensor with rH compensation designed for fast recovery and stable operation

LeadTargetGroup: xx_ELMS
Produktgroesse: Each
Search Display: Family
Umbrella Brand: Thermo Scientific™
Kammermaterial: 100 % Kupfer
Desinfektionszeit: Unter 12 Stunden
CO2-Konzentrationsbereich: 1 bis 20 %
CO2-Sensortechnologie: IR-Sensor
Sauerstoffregelung: ±0.1 °C
O2-Sensortechnologie: IR-Sensor
Feuchtigkeitsbereitstellung: Integriertes Reservoir
Relative Luftfeuchtigkeit: ≥ 93 %
Temperaturbereich (metrisch): 3 °C ueber Umgebungstemperatur bis 55 °C
Hoehe aussen (angloamerikanisch): 38.1 Zoll
Hoehe aussen (metrisch): 968 mm
Breite aussen (angloamerikanisch): 30.5 Zoll
Breite aussen (metrisch): 774 mm
Laenge aussen (angloamerikanisch): 36.8 Zoll
Laenge aussen (metrisch): 934 mm
Hoehe innen (angloamerikanisch): 26.4 Zoll
Tiefe innen (angloamerikanisch): 24.8 Zoll
Tiefe innen (metrisch): 629 mm
Breite innen (angloamerikanisch): 23.9 Zoll
Nettogewicht (angloamerikanisch): 215 lbs.
Nettogewicht (metrisch): 97.5 kg
Einschuebe: 3 Standard/12 Maximum
Laenge Einschub (angloamerikanisch): 19.68 Zoll
Laenge Einschub (metrisch): 500 mm
Breite Einschub (angloamerikanisch): 22.1 Zoll
Breite Einschub (metrisch): 423 mm
elektrische Stromstaerke: 3.3 A beim Inkubieren, 5.5 A beim Sterilisieren
Ausgaenge Daten: USB, optional 4-20 mA
Schrankmaterial: 18 Gauge, kaltgewalzter Stahl, Pulverbeschichtung
Fassungsvermoegen Einschub (angloamerikanisch): 22/66 lb.
Fassungsvermoegen Einschub (metrisch): 10/30 kg
CO2-Konzentrationssteuerung: ±0.1 °C
Hertz: 50/60 Hz
Anschluesse.: 42 mm Zugangsanschluss, hinten links
Kapazitaet (angloamerikanisch): 9.0 ft.³
Kapazitaet (metrisch): 255 l
Anz. der Einschuebe: 3 Standard/10 Maximum
Einschubmaterial: Edelstahl
Wirkleistung: 76 W bei der Inkubation, 126 W bei der Sterilisation
Zertifizierungen/Konformitaet: CE, CSA
Abmessungen (T x B x H) innen: 24.8 x 23.9 x 26.4 in. (62.9 x 60.7 x 67cm)
Fassungsvermoegen: 255 l
Elektrische Anforderungen: 230 V, 50/60 Hz
Abmessungen (L x B x H) aussen: 36.8 x 30.5 x 38.1 in. (93,4 x 77.4 x 96.8cm)
Bezeichnung: Heracell VIOS 250i C02 Einzelkammer-Inkubator
LeadTargetGroup: xx_ELMS
Product Size: Each
Search Display: Family
Umbrella Brand: Thermo Scientific™
Chamber Material: 100% solid copper
CO2 Concentration Range: 1 to 20%
CO2 Sensor Technology: IR180Si sensor
Oxygen Control: Optional 1-21% or 5-90%
Humidity Delivery: Covered integrated water reservoir
Relative Humidity: ≥93% at 37°C
Temperature Range (Metric): Ambient +3° to 55°C
Data Outputs: USB, and optional 4-20mA
Certifications/Compliance: CE, CSA
Dimensions (D x W x H) Interior: 24.8 x 23.9 x 26.4 in. (62.9 x 60.7 x 67cm)
Capacity: 9.0 cu. ft., 255L
Electrical Requirements: 230V 50/60Hz
Dimensions (L x W x H) Exterior: 36.8 x 30.5 x 38.1 in. (93,4 x 77.4 x 96.8cm)
Description: Single 255L incubator, standard model

Technical data:
Width of workspace:	607 mm
Voltage supply:	230 V AC
Вес нетто:	215 kg

Пуско-наладка

Выполним распаковку, визуальную проверку, сборку и установку, запуск и настройку, проверку функциональности, проведем инструктаж персонала.

Техническое обслуживание

Проведем периодические регламентные работы: визуальный осмотр, очистка засоренных узлов и частей, замена расходных материалов и изношенных деталей, тестирование прибора, проверка показателей и измерение параметров, калибровка и настройка, обновление программного обеспечения.

IQ/OQ/PQ квалификация, валидация

Проведем монтажную (IQ), операционную (OQ) и эксплуатационную (PQ) квалификацию оборудования по протоколам производителя в полном соответствии с стандартами GMP/GLP.

Ремонт

Проведем диагностику в нашем сервисном центре или у Вас на предприятии, выявим причину поломки, устраним неисправность, проведем тестирование, настройку, калибровку отремонтированного оборудования.
